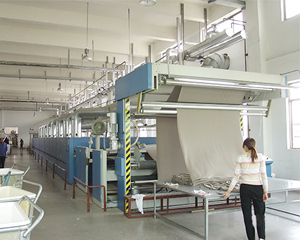

Bruckner Monfort stenter
- Minimum Order Quantity
- Unit of Measure
- 270,000-280,000 / Set USD ($)
- Price Range
- Product Type
- Textile Machinery
- 380 (60HZ) Volt/Ohm (v/ohm)
- 45359 (50 Tons) Kilograms (kg)
- Jewelry Blue + Crystal White
- 1 year
Bruckner Monfort stenter
This device consists of tension adjusting frame, upper and lower roller spreader, fabrics guide roller,infra-red centering device, machine body, slide-proof paddle. The main usage of this part is that to flat the fabrics, and make the fabrics move in the center automatically, the slide bar infra-red centering device, which designs according to the bionics can imitate human’s hand to work, no tension to the fabrics at all, especially suitable for the knitted fabrics. The manual weft straighter can correct the weft.
Head of the machine
The head of the machine consists of rough skin fabrics transport shaft, screw spreading roller, overfeed roller, protecting panel, rail and machine body, the main usage of this part is that to flat the fabrics again and infeed the fabrics to the edge spreader in overfeeding mode. Overfeeding roller controlled by inverter.
Horizontal stenting frame section
This section consists of edge blowers, camera type auto edge tracing device ,overfeed pin device, chain drive device, gemel ,rail, pin board chain and width adjust device. The main usage of this section is to ensure the fabrics to pin accurately, delivery by pin plate, shrunk and heat setting by hot air. The fabrics edges are traced automatically, width of the fabrics are adjusted by electric. Overfeed brush wheel controlled by inverter(2X0.75KW），pin plate chains controlled by inverter(2X11KW).
Hot air chambers section
This section consists of hot air blowers, chambers, heating system, filter net, exhaust moisture system, machine body, and insulation boards. The main usage of this section is utilizing the hot air to heat setting the fabrics ,steady the size. Hot air blower motor（2X7.5KW/chamber）and exhaust moisture blower motor（2X4KW）。the two layers filter can clear the dust. The thickness of the insulation boards is 150mm,filled with heat-resistant materials。
This section consists of cool air system(cool shaft system is optional, shaft diameter is 2x450mm). The main usage of this section is to cool the fabrics, avoid folds after plaited
This section consists of depinning roller, fabric exit roller, swing arms and machine body. The main usage of this section is to delivery the fabrics, fabrics exit roller motor drives by inverter (1X2.2KW).
This section consists of air-water apart device, filter device, decompress device, electric controls direction changing valve. Air pipe, cylinder. The main usage of this section is to control the cylinder and steam valve to finish the stipulated work.
This section consists of electric box, air breaker, inverter, synchronizer control system, and temperature controller and operation panel.
- FOB Port
- Payment Terms
- Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA)
- Supply Ability
- 100 Set/Sets Per Year
- Delivery Time
- 90 Days
- Sample Available
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Bulk or wooden Cases
- Main Export Market(s)
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- Main Domestic Market
- All India
