Steel Slitter Machine for Tubular Rib Knit Fabric

Steel Slitter Machine for Tubular Rib Knit Fabric
Send Inquiry
Product Code : 123456
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 65000USD USD ($)
  • Price Range
  • 55000.00 - 65000.00 USD ($)
Product Specifications
  • Product Type
  • Textile Machinery Spares
  • Material
  • Steel
  • Textile Machine Type
  • Textile Finishing Machine
  • Spare/Component Type
  • Frame
  • Usage
  • Industrial
  • Speed
  • 0-100m/min
  • Dimension(L*W*H)
  • 5320*3800*5700 Millimeter (mm)
  • Weight
  • 5000 Kilograms (kg)
  • Warranty
  • 1 year
Product Description

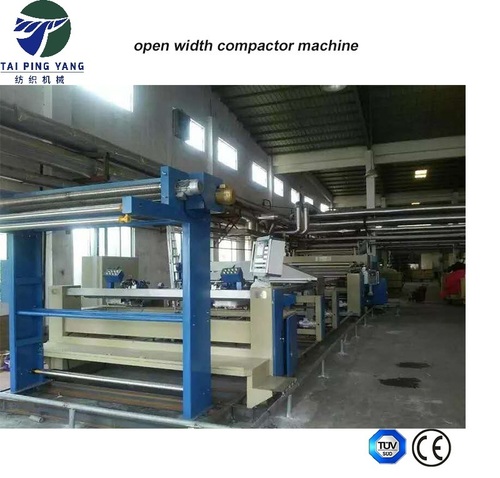

This rope open slitter  machine is used before stenter and open width compactor. It can slit the tubular fabrics and then squeezing the water, immerse the softer, also it can squeeze water, immerse softner for the open width fabrics.

Rope fabrics infeed directly and be slit,automatic detwister(automatically cenering slitting line device is optional), this machine enhance the manufacturing efficient, omit the flow process. So can save time and labour, shorten the production cycle.

Technical parameters

Driven pattern

inverter gear reducer motor drive

Fabrics speed

0~80m/min(inverter control and adjustable)

Infeed and exit pattern

tubular infeed and open width exit

Voltage

380V/220V

Machine power

small padder before slitting machine 1.5Kw(optional)

slitter10.75Kw

padder 8.6 Kw

Tubular fabrics maximum width

1200mm

Dimension

slitter 3400mm-4000mm- 6800 mm

padder 1200mmX3650mm-2200mm

small padder 2400mm- 800mm- 2000mm

Machine weight

about 12.8T

Machine structure:

1, Turn table

Pull the fabrics trolley to the turn table, after fix it, the turn table will detwister automatically.

2, Small padder(optional)

The wet fabrics will be squeezed by the small padder,which can remove some water from the fabrics,which makes easier to slit,then the fabrics enter to the detwist device

3, Detwister device

Rope type fabrics enter the detwister,there is sensor on the detwister, which can sense the twist and send signal to orer the detwister head and turn table to rotary and detwist, then fabrics will enter the slitting umbrella under the draw of the active motor.

4, Slitting umbrella

It is made of stainless steel, diameter can be adjustable, there is synchronous breadth adjust device in the back. It is the same width with umbrella frame. When working, rotary the umbrella frame to center the slitting line(customer can order automatic slitting centering device)

5, Slitting blade

Diameter 200 mm; rotary speed 2800rpm; when the three phase motor drive, it will start to slit the fabrics.

6, Stretcher

After slit, the active roller will bring the fabrics to spreading frame, the stainless steel tube is made to triangle shape and will open the fabrics, it is flexible, can be adjusted. Then fabrics enter the padder through the infra-red centering device.

7, Slat pattern infra-red centering device

Fabrics after slit go through double spreading shafts of the infra-red centering device to expand, then will be corrected by centering shaft, at last enter Padder.

Though adjust the air cylinder, the different pressure will be press on the squeezing roller, then the extra liquid will be press out from the fabrics. The center of the squeezing roller is steel structure, outside covers USA special glue. Surface is high profile, the contact surface of the doule squeezing roller will have a parallel to the squeezing seam under 80KN pressure. There is liquor detention on the fabrics.

8, Plaiting exit

Fabrics after squeezing liquid will exit with plaiting, it is drivin by active roller, driven by three phase motor.


Electrical control

  • The electrical control adopts relay-contactor pattern, main driven speed is controlled by inverter.
  • Electrical components, inverter is Delta brand, low voltage appliance is shneider of France.

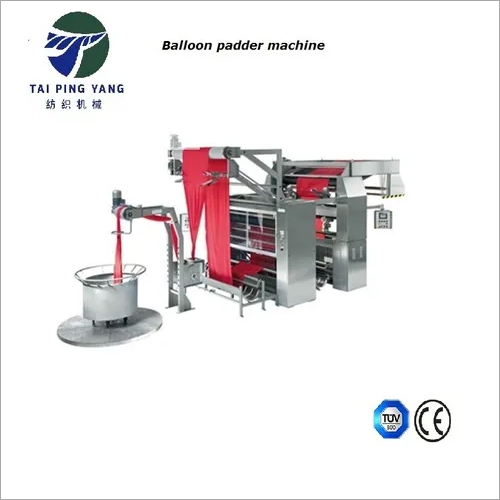

Detwister Slitting Padder

Trade Information
  • FOB Port
  • Tianjin Qing dao
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash in Advance (CID)
  • Supply Ability
  • 100SETS Per Year
  • Delivery Time
  • in 1 Months
  • Sample Policy
  • Within a certain price range free samples are available
  • Packaging Details
  • Stander packing way
  • Main Export Market(s)
  • South America, North America, Central America, Australia
  • Main Domestic Market
  • All India
  • Certifications
  • CE ISO 9001
