Stenter Dyeing Machine

100000USD USD ($)

Product Details:

  • Product Type Textile Machinery
  • Material STEEL
  • Machinery Type Other
  • Voltage 220/380v Volt (v)
  • Power 220V Watt (w)
  • Dimension(L*W*H) 48300*4620*1750MM Millimeter (mm)
  • Weight 14ton Kilograms (kg)
  • Supply Ability : 10 Set sets Per Year
  • Click to view more
X

Price And Quantity

  • 100000USD USD ($)
  • 100000.00 - 150000.00 USD ($)
  • 1 Set

Product Specifications

  • blue and grey
  • 14ton Kilograms (kg)
  • Other
  • 220/380v Volt (v)
  • 1 YEAR
  • STEEL
  • 48300*4620*1750MM Millimeter (mm)
  • Textile Machinery
  • 220V Watt (w)

Trade Information

  • tianjin qingdao
  • 10 Set sets Per Year
  • in 3 months Months
  • Free samples are available
  • Stander packing way
  • All India
  • ISO9001 CE

Product Description

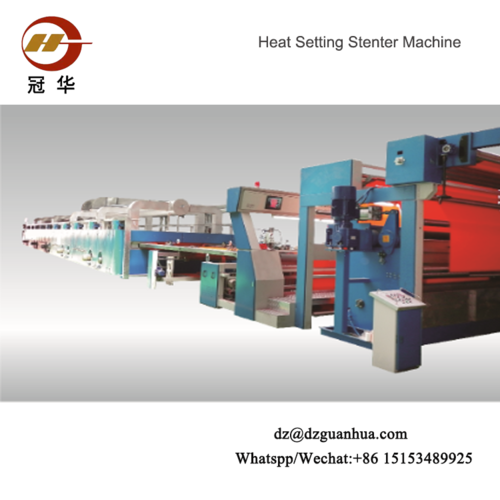

Hot Air Stenter Setting Machine

The Heat Setting Stenter Machine is used for cotton/chemical fiber/mixed knitted woven fabric/ by opening width, drying and styling process.

According to the width of the fabric, we can offer the following models:

  • DGLD1600/1800/2000/2200/2400/2600/2800/3000/3200/3400/3600/3800/4000
  • The machine is equipped with horizontal rollers, the diameter is from 360mm to 400mm based on the machine width of 3000mm or wider.

The specification of Stenter Machine

Origin

China

Year of manufacture

2018

Main Matching Fabric

open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and
other blended fibers

Heat source

natural gas/circulating conduction oil/steam

Stentering type

hot air circulating

Holding type

pin+clip

Chain type

pitch 60mm,oil-free lubricated

Rail type

carbon steel+polymer wearing strip

Working type

horizontal return chain

Working width

1000-3600mm

Working speed

5-60m/min

Chamber Nos

2-12

Chamber width

3000mm

Insulating board thickness

150mm

Temperature of chamber

100~220ºC

Pinning & brush overfeed ratio

-20%~40%

Temp.& Breadth adjustment type

separately adjust on each chamber

Capacity of machine

61.5kw+22.75kw*chamber*Nos

Standard machine power supply

380V/3P/50HZ

Control power supply

220V/24V

Steam specification of steam box

3-6kg/cm²

Steam comsuption of steam box

100-150kg/h

Compressed air

0.35-0.6MPa

Total weight

14T+5.8T/chamber*Nos

Advantage:

  • We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
  • With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.

Dezhou Taiping Yang Textile Machinery Co.,Ltd
