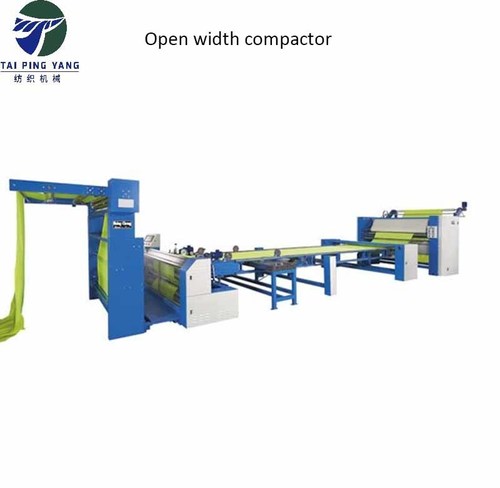

TPYLS2800 Open width Compactor

TPYLS2800 Open width Compactor

100000 USD ($)/Set

Product Details:

  • Product Type Compactor Machine
  • Weight 3000 Kilograms (kg)
  • Warranty 1 year
  • Supply Ability : 100 Set Set/Sets Per Year
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 100000.00 - 150000.00 USD ($)/Set
  • 100000 USD ($)/Set

Product Specifications

  • 1 year
  • Compactor Machine
  • 3000 Kilograms (kg)

Trade Information

  • Tianjin
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • 100 Set Set/Sets Per Year
  • 60 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Stander export packing way
  • All India
  • ISO9001 CE

Product Description

The TPYLS2800 Open width Compactor we offer are equipped with magnetic levitation abstracted holders, electric oil cylinders, 20mm seamless felt, self-loading hydraulic precise folders etc. These machines are primarily utilized for the preshrinking procedure of cotton. Blender fabrics of more than 65% cotton can put-upon these machines also. The machines manage wool circular fabrics with a preshrink ratio of 18% and shrinkage less than 5%. Coming to the structure of the machine, these are characterized with constant tension feeding devices, which consist body frames, foot boards, photoelectric controllers, active draw shafts, R shaped fabrics trunks etc.

The primary function these execute is to feed the fabrics into the machines smoothly, by eliminating the instability of fabric’s width and shrinkage grounded by tension moves. The overfeeding devices and holders of the products are newly configured magnetic fluctuate model. The overfeeding wheels of the machines are made of Polyurethane material,which has an extended life span. The Tube Compactor Machines we offer are also included with steaming devices, ready-made with stainless steel and two-fold layers construction and contain a vapor liquid extractor and a condensing device.

The compacting section is the most important part of the machines, which includes electric oil cylinders, damping plates and 20mm ring felt. The fabrics is consolidated between the felt and damping plates when fabrics leave the damping plates it goes into the setting zone between felt and cylinder. The temperature of the cylinder can be adjusted according to the requirement of operation and is controlled by a thermos-regulator.

Features:

  • Conveyor belts that transport fabrics tension less without the drifting.
  • Folding devices are also included with a pair of guide rolls, body frames, lifting tables, pressure plates and a hydraulic system.
  • Drive devices are integrated, which are driven by 4 gear reducer motors.
  • The electrical system of the machines consists; temperature controllers, PLC, inverter, air breakers, electric cabinet, synchronous controllers etc.

Technical Specification

Working width

1450mm(cylinder length 1550mm)

Machine speed

3~30m/min

Technical speed (actual speed when working)

15-20m/min(depends on process)

Steam box steam consumption

60~100kg/hour

Temperature control precision

±1

Cylinder heating pattern:

steam heating(consumption:4-6Kg/cm²steam 80-100Kg/H;)

Electric oil(consumption:

25-30KW/H)

Circulation oil

consumption 30000-50000Kcal/ H

Machine power


Steam heated

10Kw

Electric oil

46 KW/H

Circulation oil

10Kw

Dimension(L*W*H)

6400X2750X2250mm

Weight

4.5tons




Dezhou Taiping Yang Textile Machinery Co.,Ltd
