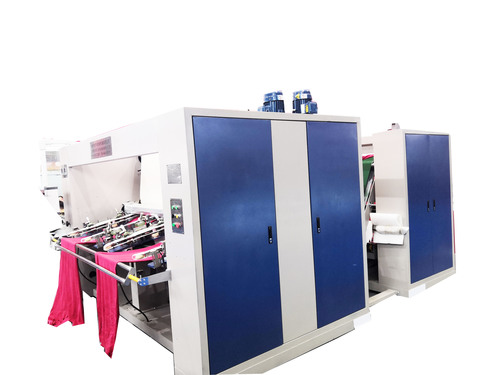

Tubular Fabric Blanket Preshrinking Machine of Textile Machinery for Textile Finishing

Send Inquiry
Product Code : 8451800003
Product Description
  • Magnetic separating shuttle, hydraulic lifting platform, 18mm NOMEX carpet. The fabric could keep in a stable size during this process after drying machine. Less than 5% shrinkage and excellent softness could be reached.
  • Based on different sources, we could offer the following four models:
  • Steam/Electricity+Conducting Oil (Internal loop)/ Electricity+Conducting Oil(External Circulation) / Conducting Oil Supply
  • The temperature of steam drying model could reach 130°C, other models' temperature are more than 180°C.
  • Our machine blanket is 18mm thickness, containing NOMEX material, which could resist high temperature and not pollute the fabric.

*The width of fabric: 1500 mm Max.
**Standard diameter of Cylinder is 450mm.


Design Drawing


Fsys450bq Tubular Fabric Blanket Preshrinking Machine of Textile Machinery for Textile Finishing

Basic Info

Model

FSYS450


Name

Application

Textile-finishing(shrinkage rate:2-5%)

Suitable Fabric

Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%)


Techical Dates

Main Matching Fabric

tubular fabric of above 65% cotton content

heat source

natural gas / circulating conduct oil / steam

pre-shrinking type

20mm Nomex compacting

supporting plate type

maglev separeted shuttle

fabric outfeed type

auto precisely plaiter

Max working width of supporting plate

1450mm

Max working width of felt

1500mm

working speed

5-30m/min

drum temperature control type

up & down separatly control

drum drive type

up & down separatly drive

Max temperature of drum

electricity,conduct oil <190ºC,steam<140ºC

breadth adjustment type

manual and electromotion

capacity of machine

10kw

standard machine power supply

380V/3P/50HZ

control power supply

220V/24V

steam specification of steam box

3-6Kg/cm² saturated steam

steam comsuption of steam box

50~100 kg/h

compressed air

0.35-0.6MPa

dimension

L*W*H=6500mm*2740*2250mm

total weight

4.55T
